Raspberry Pi TFT screen 7 inch touch display Maximize

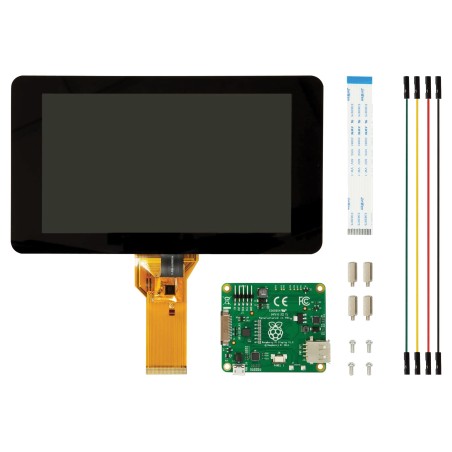

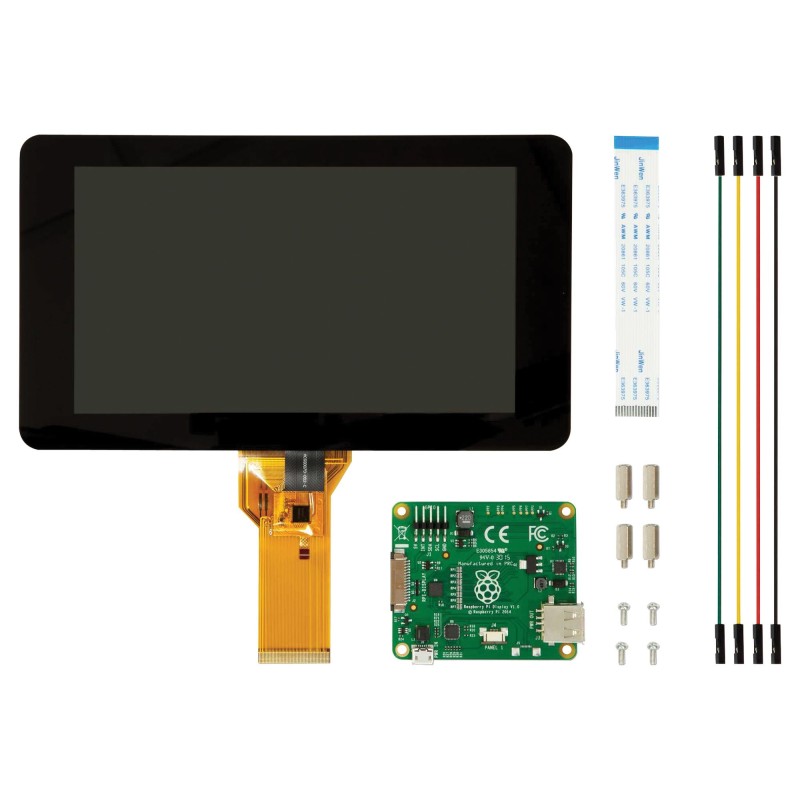

Raspberry Pi TFT screen 7 inch touch display

The original 7 inch capacitive touch display, made for and by Raspberry Pi!

More details

Availability: On_stock

79,95 €

With this official display from the Raspberry Pi Foundation you have a nice extension of your Raspberry Pi. The possibilities? How about a Raspberry Pi tablet, or installing a screen in your car as an alternative infotainment system... Or make your own energy monitor, or access point to your home automation set... Plenty of options!

  • The latest drivers support an on-screen keyboard, so with this display there is no need to plug in a mouse/keyboard.
  • The mounting brackets on the back of the screen make it possible to attach the Raspberry Pi to it.

The connection manual can be found here.

There are 3 connection options for the power:

  • Via a separate adapter (minimum 500 mA)
  • Via the supplied jumper cables (so only 1 power supply is needed)
  • Via a special USB cable (Power supply on adapter board, the Raspberry gets power from this cable)

Technical Specification:

  • 7" Touchscreen Display.
  • Screen Dimensions: 194mm x 110mm x 20mm (including stand-offs)
  • Viewable screen size: 155mm x 86mm
  • Screen Resolution 800 x 480 pixels
  • 10 finger capacitive touch.
  • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
  • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

Please Note - it requires the latest version of Raspbian OS to operate correctly.

For all details, see also the Specifications.
