Raspberry Pi Pico - no WiFi - complete wheel (480-pack) Maximize

Raspberry Pi Pico - no WiFi - complete wheel (480-pack)

The Raspberry Pi Foundation's first controller

More details

Availability: On_stock

1 699,95 €

On sale On sale!

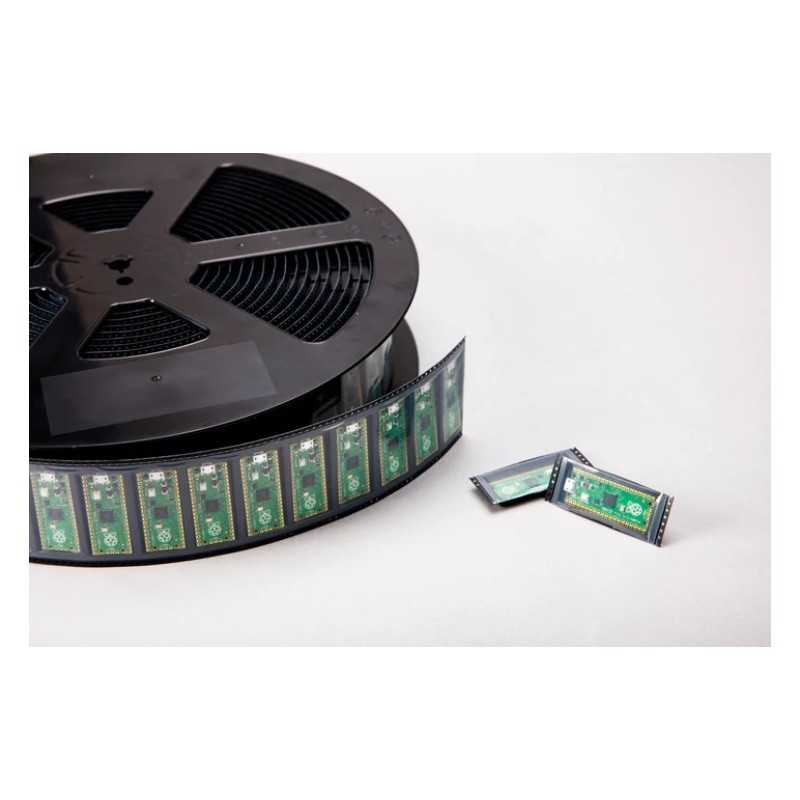

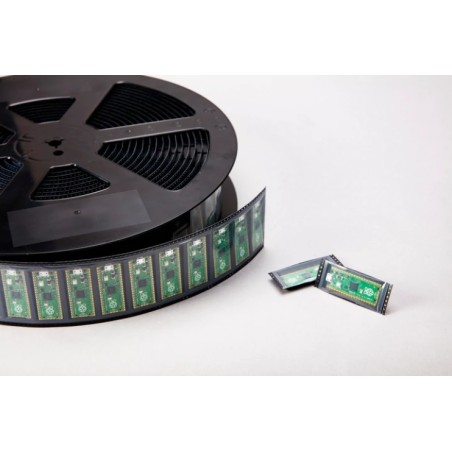

Discount package of 480 x the Raspberry Pi Pico (Without WiFi).

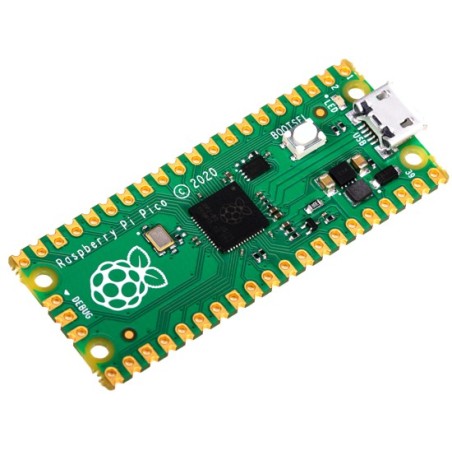

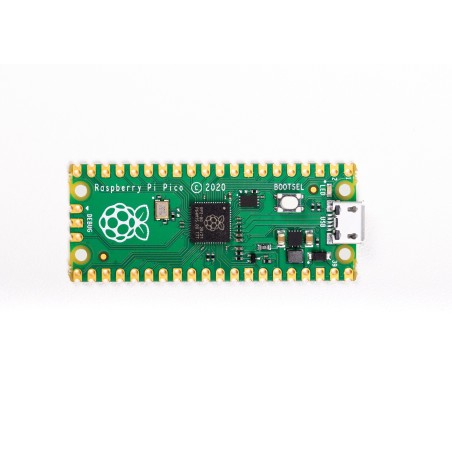

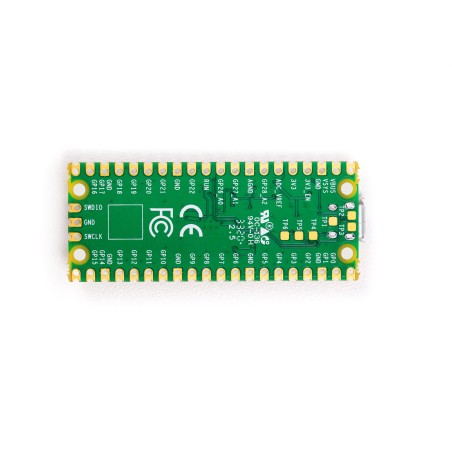

The Raspberry Pi Foundation has made its own counterpart to the well-known Arduino: the Raspberry Pi Pico. On this board is an internally developed chip, the RP2040, which has 2 ARM Cortex-M0 + cores with a clock speed of 133 Mhz, 256KB RAM, 30 GPIO pins and a wide spectrum of interface options. Along with 2MB on-board QSPI-Flash memory for code and data storage.

All of that comes the small size of 21mm x 51.3mm x 3.9mm and weighs only 3 grams. Programmable in C ++ or MicroPython.

What is a controller?

The Raspberry Pi Pico is not a successor to the Raspberry Pi v4. The Raspberry Pi's as we know them before are processors. Strong chips that are able to contain a complete operating system, and perform multiple tasks at the same time. However, the Raspberry Pi Pico is a controller. A much simpler chip, which is capable of (in principle) 1 task. As there is no operating system running on it, you will have to program everything yourself. This is ideal if you want to perform simple tasks, such as reading out the temperature, and color a light red or blue based on this. Or delegated tasks, such as reading a command from the USB port, then flashing a row of lights in your chosen pattern... Or sounding an alarm when someone walks through a motion sensor. The Pico is already sufficiently suitable for this!

Specifications:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0 + processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • 8 × Programmable IO (PIO) state machines for custom peripheral support

For all specifications and sample projects, see also the Pico website: https://pico.raspberrypi.org/getting-started/
