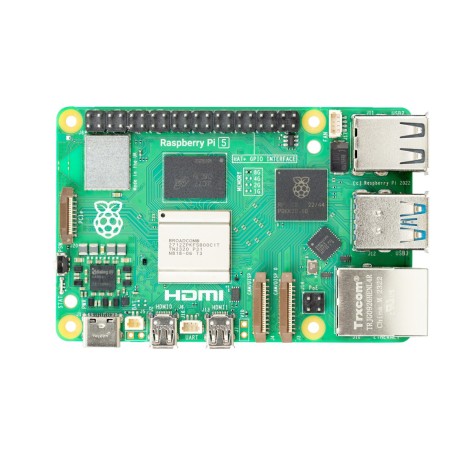

Raspberry Pi 5 - 4GB - PRE-ORDER

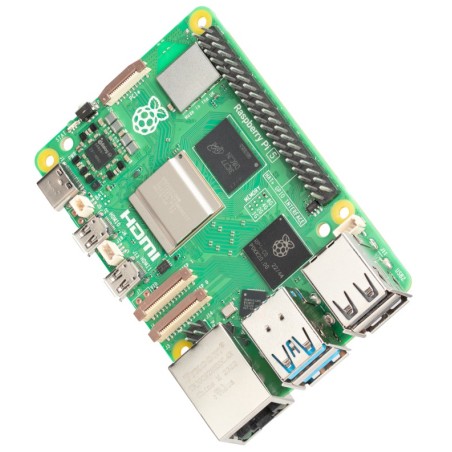

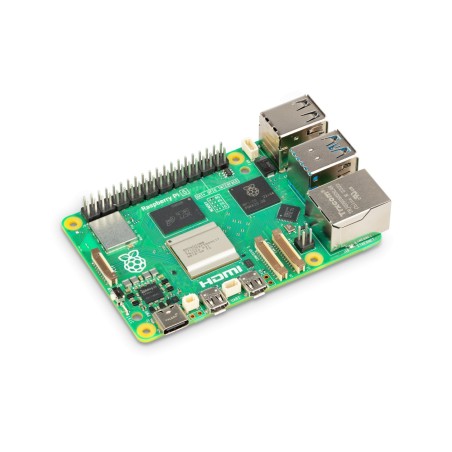

Raspberry Pi 5 - 4GB, the newest version of the popular Single Board Computer

PLEASE NOTE: Will be shipped in January

More details

SC1111

Availability: Not_on_stock

Availability date: 8 January 2024

74,95 €

PLEASE NOTE: Will be shipped in January

The Raspberry Pi 5 builds upon the phenomenal success of the Raspberry Pi 4. Compared to its predecessor, it delivers a 2-3x increase in CPU performance and a significant improvement in GPU performance, along with enhancements to the camera, display, and USB interface.

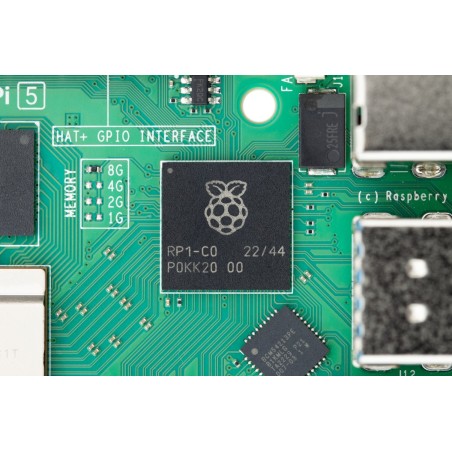

These interface improvements are provided by the RP1 I/O controller chip, designed in-house by Raspberry Pi. So, for the first time, there is actual Raspberry Pi silicon in their flagship product!

The Raspberry Pi 5 has several notable improvements over previous models, including:

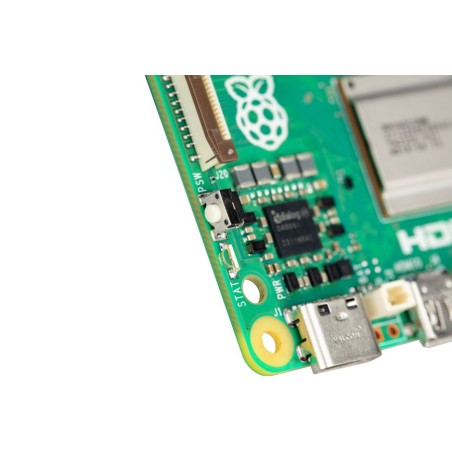

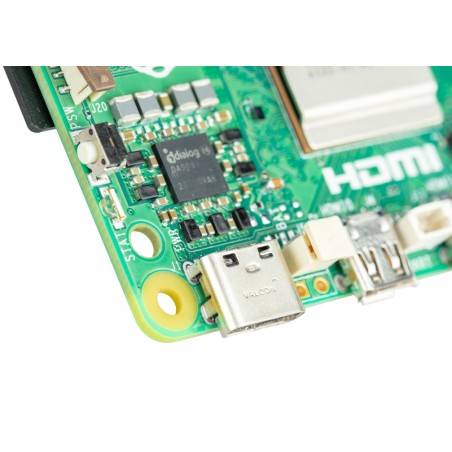

  1. On-board Power button
  2. 2-3 times faster thanks to the new processor
  3. Faster SD card access
  4. 2 camera/display ports (allowing for the connection of "2 displays" OR "2 cameras" OR "1 camera and 1 display")
  5. RTC capability with a separately sold battery module
  6. PCIe 2.0 x1 interface for separately sold PCIe HAT, enabling fast expansion possibilities
  7. Separate FAN connector, keeping the GPIO ports available when using a fan
  8. Separate UART connector for the Raspberry Pi Debug Probe

Only PRE-ORDER options available, with a maximum of 3 units per customer per month. We expect to maintain this limit until the beginning of 2024.

Specifications:

  • 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache
  • VideoCore VII GPU
  • LPDDR4X-4267 SDRAM (Only 4GB and 8GB available at launch)
  • 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • Micro SD card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • Gigabit Ethernet, with PoE+ support (Please note: this requires a NEW PoE+ HAT)
  • 2 × 4 lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals

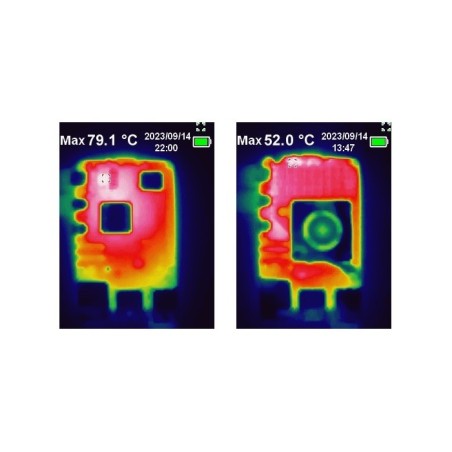

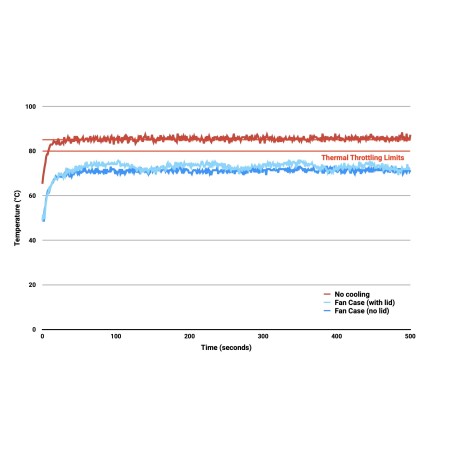

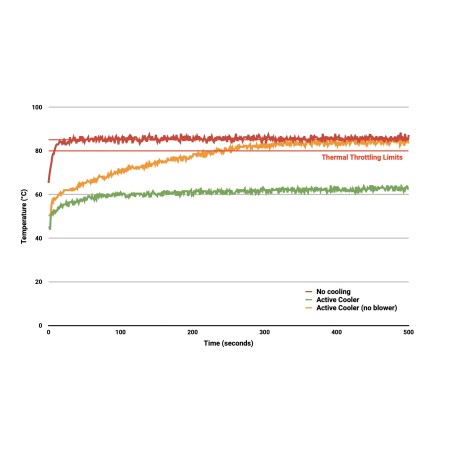

This version needs an active cooling. Don't forget to add one to your order! A case with internal fan (for the Raspberry Pi 5) is also possible.

For more information, also see the Raspberry Pi 5 product page
