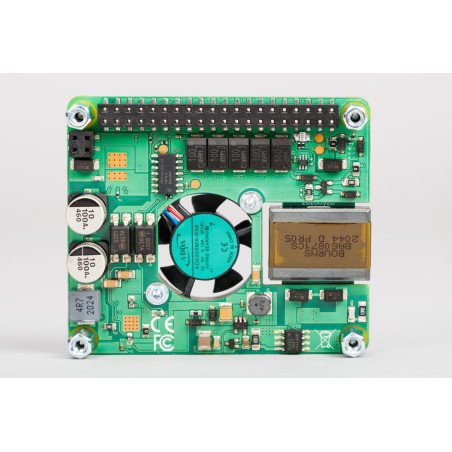

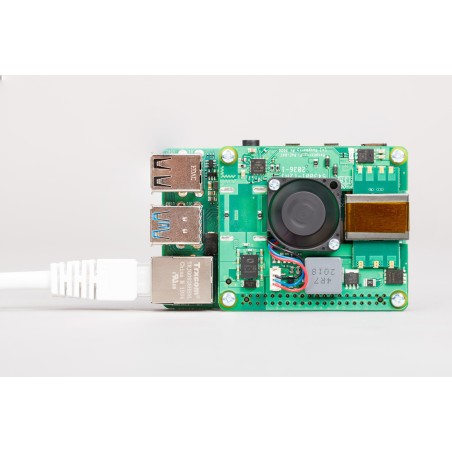

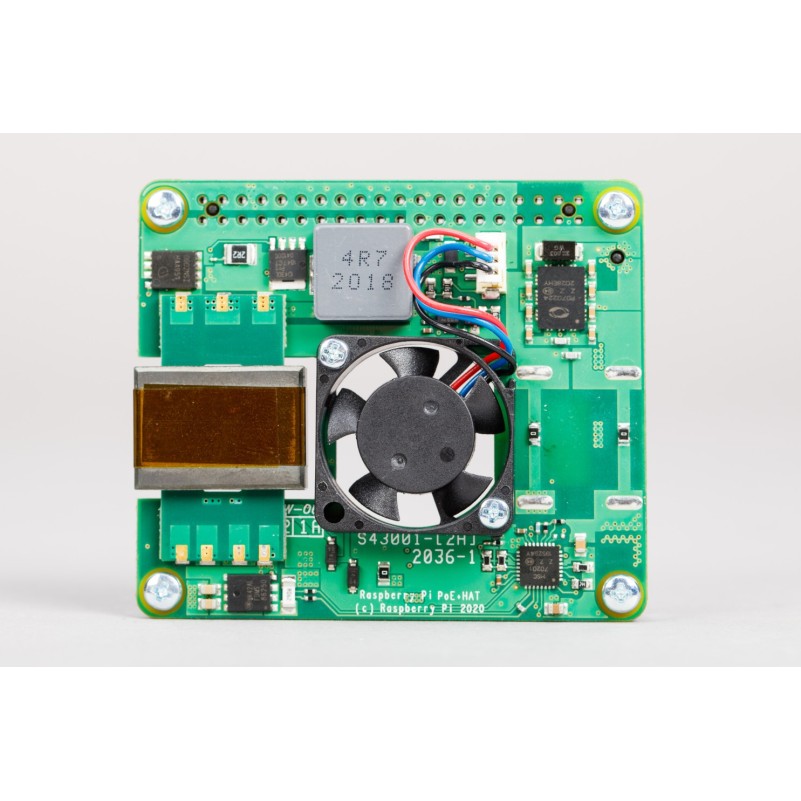

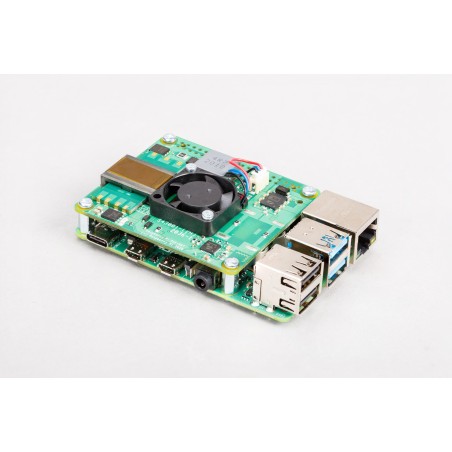

Raspberry Pi PoE+ HAT (2021) - SC0468

The official PoE+ HAT for the Raspberry Pi. This is the successor to the Raspberry Pi PoE-HAT, with much more power! Put an external hard drive to work via the USB ports, the Raspberry Pi can supply enough power with this PoE+ HAT.

Use these to power a Raspberry Pi 4 (or 3B+) via the Ethernet cable, eliminating the need for a separate adapter. Ideal for many embedded and IoT projects. You also need a PoE injector (802.3af compliant) or a router with PoE capabilities. These are not included!

• Power over Ethernet 802.3af compliant (802.3at-2003 Type 1)
• Class 4 device
• Fully Isolate Switched-Mode Power Supply (SMPS)
• 37-57V Input Voltage
• 5V output voltage
• Delivers up to 4A (previous model: 2.5A)
• Fan Control (25mm x 25mm Fan)
• Plug-and-play compatibility with Raspberry Pi 3 Model B+ and Raspberry Pi 4 (1, 2, 4 or 8Gb)

Note:

• Does NOT fit in the official Raspberry Pi enclosures!
• When mounting the PoE-HAT, DO NOT use the Raspberry Pi with the USB-C power supply.
• Not usable in combination with heatsinks, the PoE-HAT is too low on the Raspberry Pi for this. Due to the built-in fan, you don't need heatsinks either.
• When using PoE, the 2 wires are used for the power supply, and no longer for the throughput of 1Gbps network!
