ArduCam 1/4" 5 MP Sensor Spy Camera Module for the Raspberry Pi Maximize

ArduCam 1/4" 5 MP Sensor Spy Camera Module for the Raspberry Pi

ArduCam 1/4 Inch 5 Megapixels sensor spy camera module with flex cable for Raspberry Pi model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+, 4

More details

Availability: On_stock

29,95 €

Here's what ArduCam says about it:

Item Description:

In order to meet the increasing need of Raspberry Pi compatible camera modules. The ArduCAM team now released another add-on spy camera module for Raspberry Pi series boards which is fully compatible with official one.

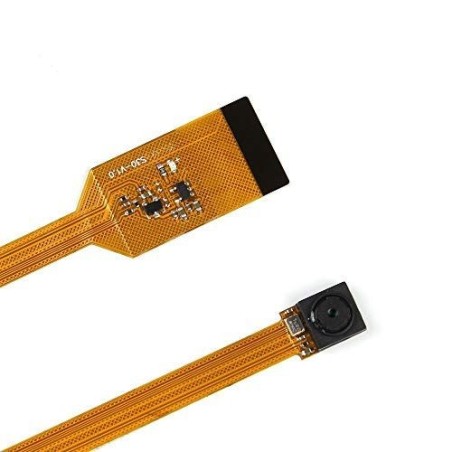

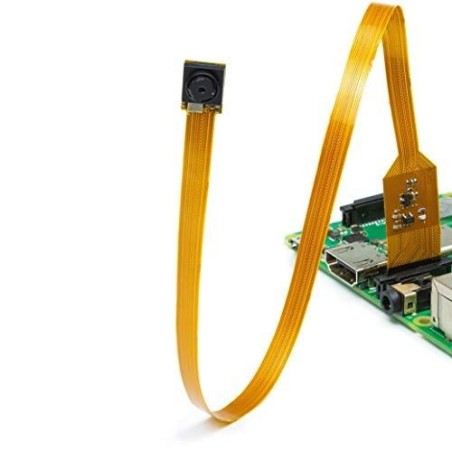

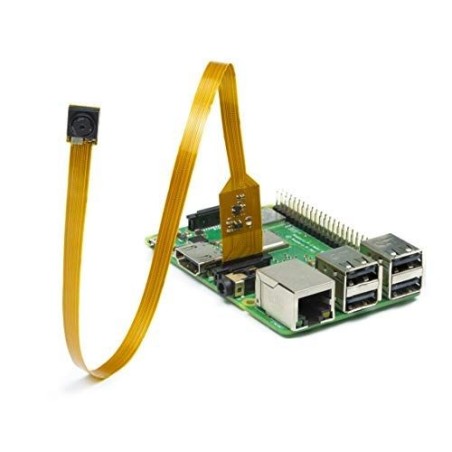

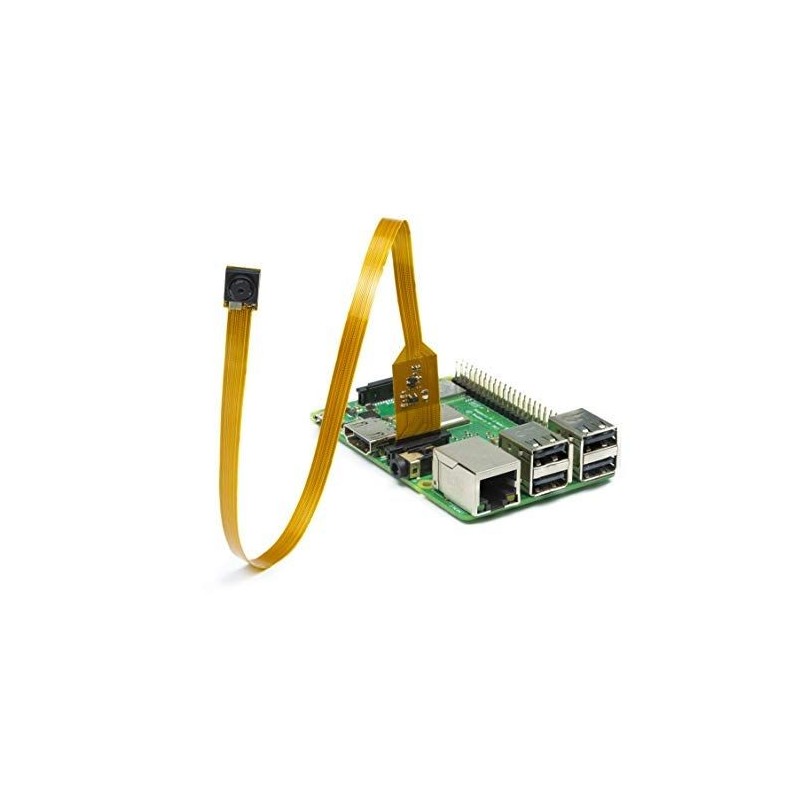

The board itself is tiny, at around 300mm x 16mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.


  • Cellular phones
  • PDAs
  • Toys
  • Other battery-powered products
  • Can be used in all Raspberry Pi platforms
  • For More information, please visit


  • High-Definition video camerafor Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
  • Integral IR filter
  • Angle of View: 62 x 47 degrees
  • Field of View: 2.0 x 1.33 m at 2 m
  • Full-frame SLR lens equivalent: 35 mm
  • Fixed Focus: 1 m to infinity
  • Still picture resolution: 2592 x 1944
  • Max video resolution: 1080p
  • Max frame rate: 30fps

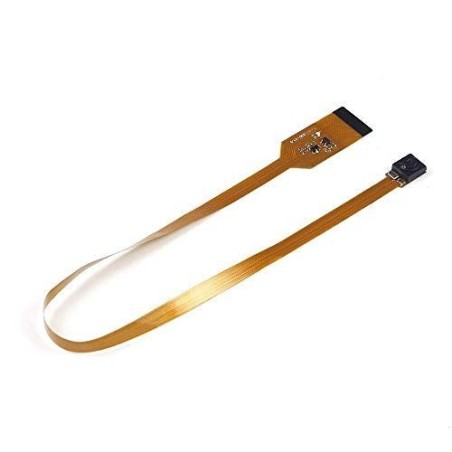

  • Size: 300 x 16 mm flex cable, neck wide is 6mm

Package including:

1pcs Spy Camera Module 1/4 Inch 5 Mega pixel Module with flex cable for Raspberry Pi
NOTE:Raspberry Pi Type B Development Board is NOT INCLUDED
