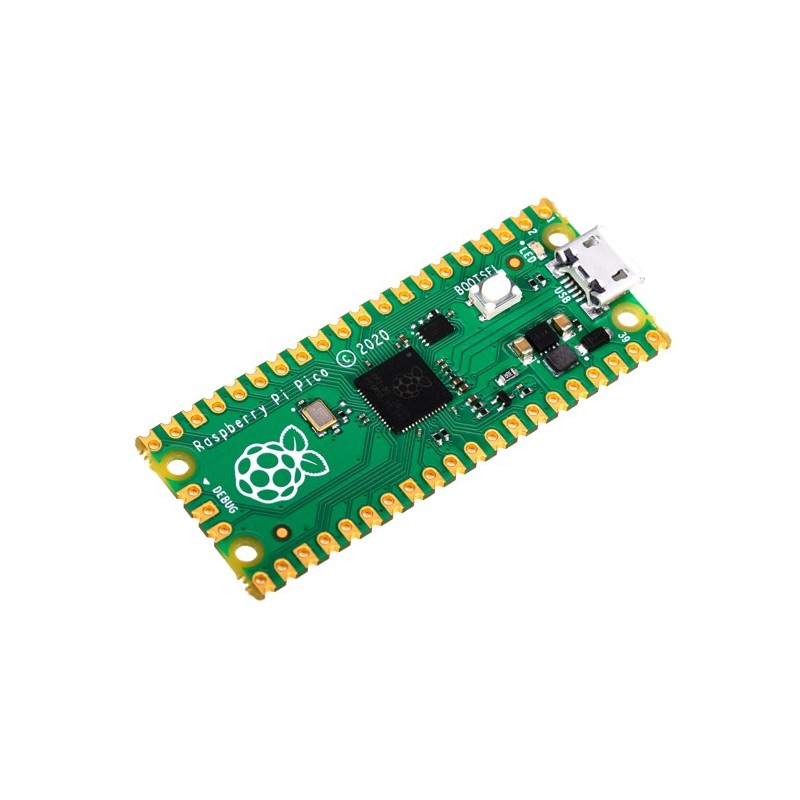

Raspberry Pi Pico - Including pre-soldered headers

Don feel like installing the headers yourself? Or do you not have a soldering iron? No problem! We can do this for you!

The Raspberry Pi Foundation has made its own counterpart to the well-known Arduino: the Raspberry Pi Pico. On this board is an internally developed chip, the RP2040, which has 2 ARM Cortex-M0 + cores with a clock speed of 133 Mhz, 256KB RAM, 30 GPIO pins and a wide spectrum of interface options. Along with 2MB on-board QSPI-Flash memory for code and data storage.

And all that in the small size of 21mm x 51.3mm x 3.9mm and weighs only 3 grams. Programmable in C ++ or MicroPython

What is a controller?

The Raspberry Pi Pico is not a successor to the Raspberry Pi v4. The Raspberry Pi's as we know it before are processors. Strong chips that are able to contain a complete operating system and perform multiple tasks at the same time. However, the Raspberry Pi Pico is a controller. A much simpler chip, which is able to (in principle) perform 1 task. So there is no operating system running on it, you will have to program everything yourself. This is ideal if you want to perform simple tasks, such as reading the temperature, and color a light red or blue based on this. Or delegate tasks, such as reading a command from the USB port, and then flashing a row of lights in your own chosen pattern ... Or sounding an alarm when someone walks through a motion sensor. The Pico is already sufficiently suitable for this!

Specifications:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M0 + processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 2MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating point libraries on-chip
• 8 × Programmable IO (PIO) state machines for custom peripheral support
• For all specifications and sample projects, see also the Pico website: https://pico.raspberrypi.org/getting-started/
