GFX HAT - 128x64 LCD Display with RGB Backlight and Touch Buttons - PIM400 Maximize

GFX HAT - 128x64 LCD Display with RGB Backlight and Touch Buttons - PIM400

Add a display to your project!

More details

Availability: On_stock

24,95 €

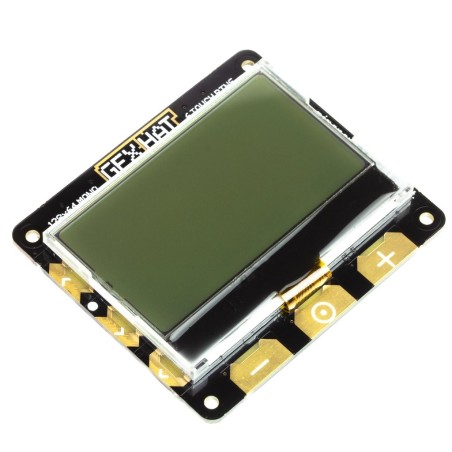

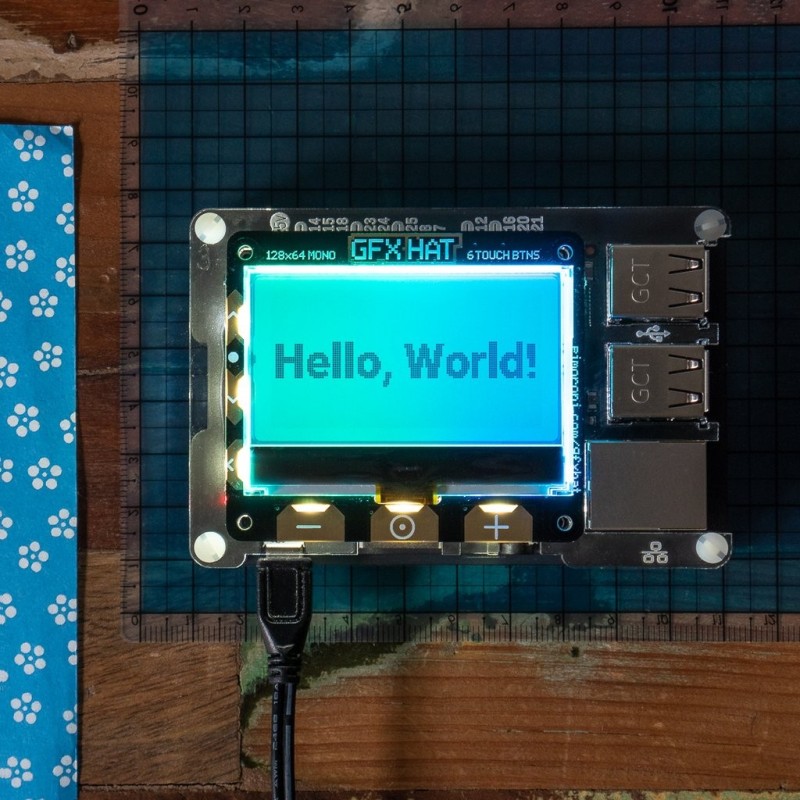

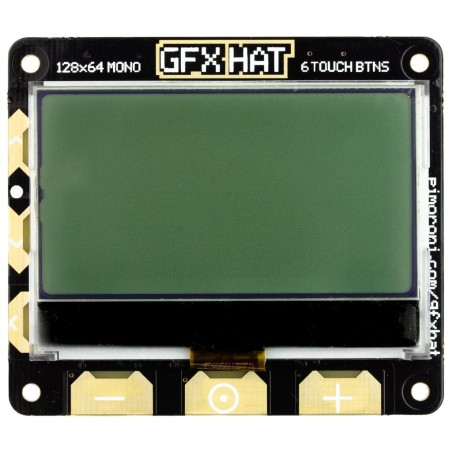

A 128x64 pixel, 2.15" LCD display with hip RGB backlight with six zones and six capacitive touch keys. GFX HAT is an ideal display and interface for your headless Pi projects.

GFX HAT gives you the flexibility of individual pixels, allowing you to display more complex graphics and real fonts, while retaining the convenient capacitive touch buttons for input/navigation.

Features

128x64 pixel, 2.15" LCD screen
Integrated diffuser/reflector assembly
Six-zone RGB backlight

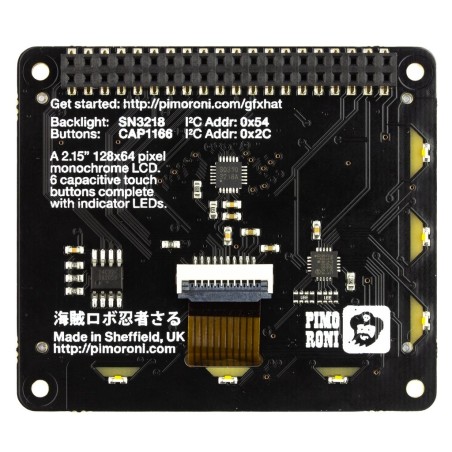

SN3218 LED driver chip (I2C address 0x54)
Six capacitive touch buttons with white LEDs
Microchip CAP1166 capacitive touch/LED driver chip (I2C address 0x2c)
Compatible with all 40-pin Raspberry Pi header models
Python library
Comes fully assembled
Software
Pimoroni's Python library covers the display on the LCD screen, controlling the backlight and linking functions to the touch buttons. A number of examples have also been included to get you started.
