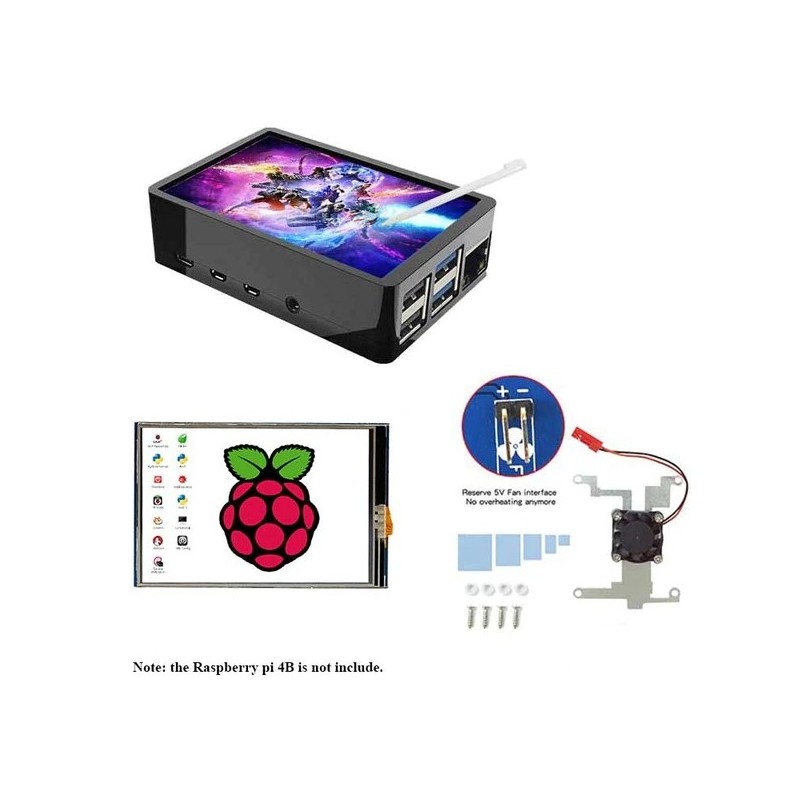

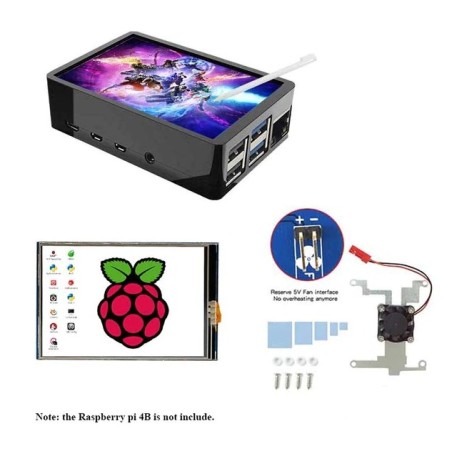

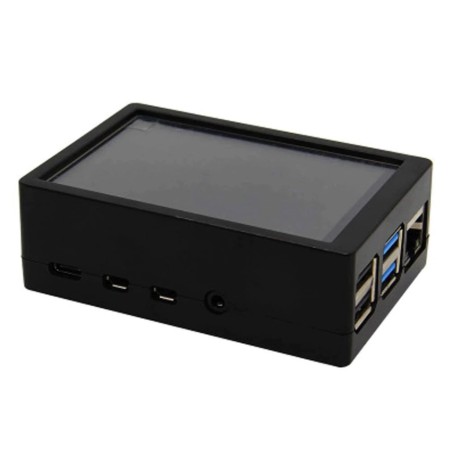

3,5" display with housing, fan and stylus

3.5" display with case, fan and stylus. Resistive 480 x 320 touch screen. The first touch screen display we've found with a fan option. Comes with case included, so you can be sure everything fits together.

Suitable for the Raspberry pi 4. Extra cover plate is included if you would use the housing without a screen.

Mounting-instructions:

• Stick the double-sided tape on the processor, memory, and the other 2 chips on the Pi (See product photos for correct placement).

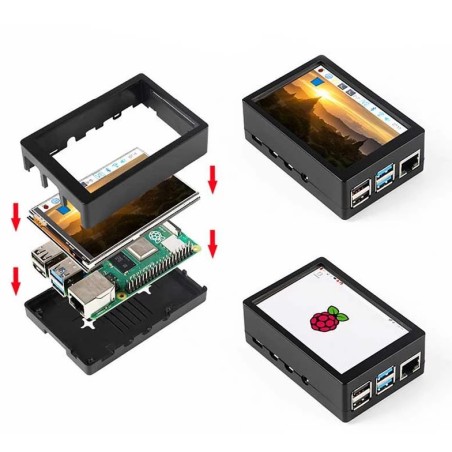

• First install the Raspberry Pi and the fan (including the spacers) on the lower part of the case.

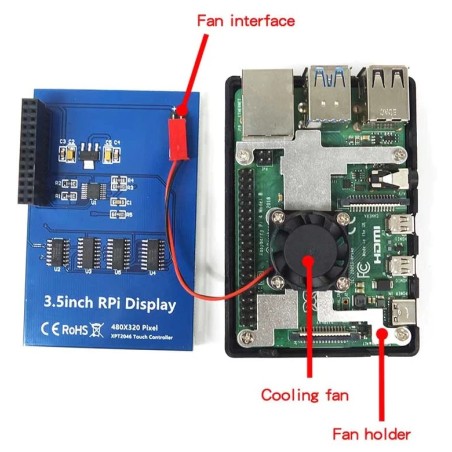

• Connect the fan cable to the red wire on the + terminal on the back of the display.
• Gently press the display onto the GPIO pins of the Raspberry Pi.
• Check that everything works properly before clicking the upper part of the housing.
• Install the software to use the display and touch screen.

Official links of the supplier:

• Install https://www.youtube.com/watch?v=er1cV1KU_ws
• Calibration https://www.youtube.com/watch?v=9GR46jMDJRo
• Command driver: https://www.waveshare.com/wiki/3.5inch_RPi_LCD_(A)
• git hub https://github.com/waveshare/LCD-show
