Arducam 5 MP mini camera video module for the Raspberry Pi 3 and 4 Maximize

Arducam 5 MP mini camera video module for the Raspberry Pi 3 and 4

Arducam 5 megapixels 1080p sensor OV5647 mini camera video module for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+ and Pi 4.

More details

Availability: On_stock

16,95 €

NOTE: conncector for the Pi Zero is not included and can be ordered separately.

Here's what Arducam says about it:

Product Description:

In order to meet the increasing need of Raspberry Pi compatible camera modules.

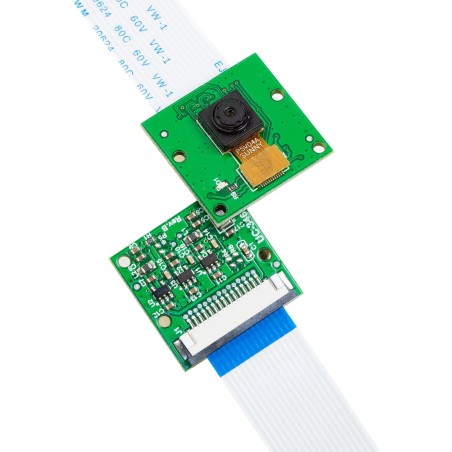

The Arducam team now released another add-on mini camera module for Raspberry Pi series boards which is fully compatible with official one.

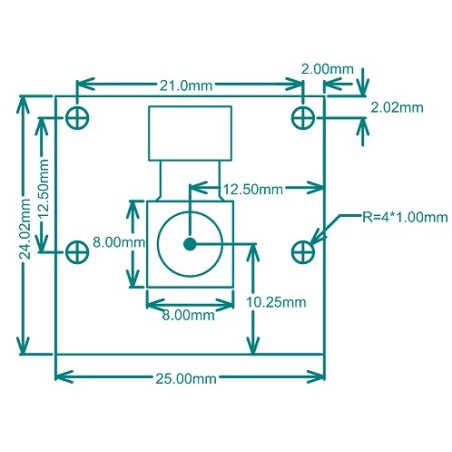

The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important.

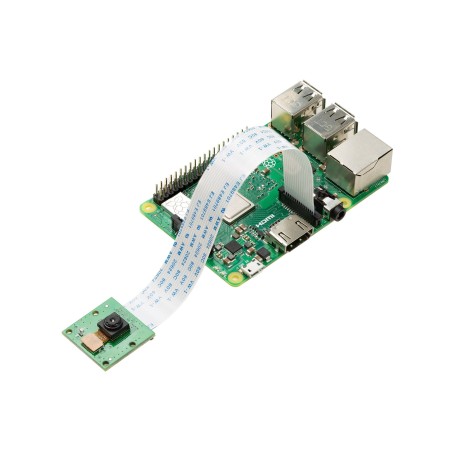

It connects to Raspberry Pi by way of a short ribbon cable.
The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
This bus travels along the ribbon cable that attaches the camera board to the Pi.

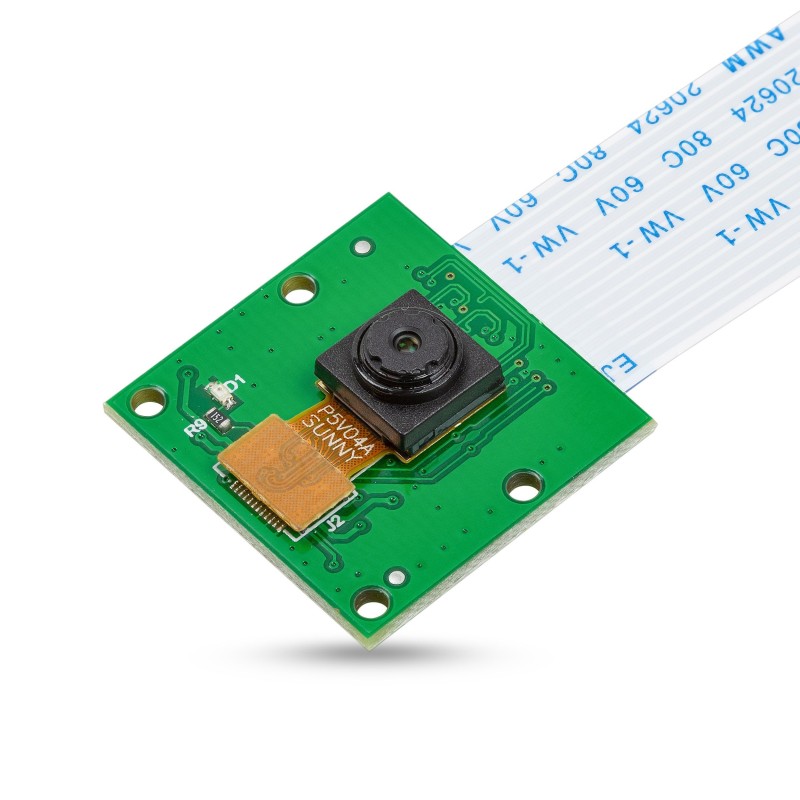

The sensor itself has a native resolution of 5 megapixels, and has a fixed focus lens onboard.
In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.
It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.
This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.

Application:

  •     Cellular phones, PDAs, Toys
  •     Other battery-powered products
  •     Can be used in all Raspberry Pi platforms

Features:

  •     High-Definition video camera for Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+ and Pi Zero
  •     Angle of View: 54 x 41 degrees
  •     Field of View: 2.0 x 1.33 m at 2 m
  •     Full-frame SLR lens equivalent: 35 mm
  •     Fixed Focus: 1 m to infinity
  •     Max frame rate: 30fps

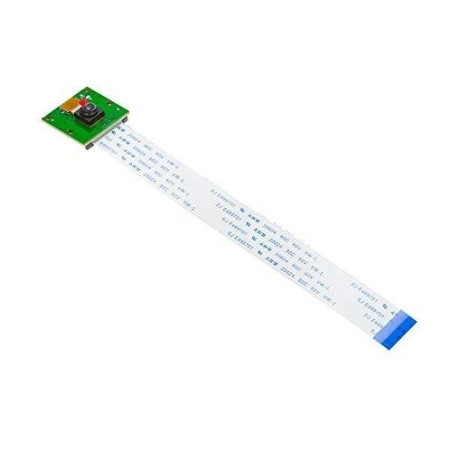

  •     15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector


Package including:

  • 1pcs 5MP Mini Camera OV5647 Sensor 1080p 720p video for Raspberry Pi Official Board
  • 1pcs 15cm 15pin FPC cable
  • NOTE: Raspberry Pi Development Board is not included!


Document:
Arducam Documentation u2013 Arducam Cameras for Raspberry Pi
